[5] Hy-Pro V5-60 Trailed Feeder Valve

Shop > Hy-Pro Pumps & Valves > Hy-Pro Valves

[5] Hy-Pro V5-60 Trailed Feeder Valve
  • [5] Hy-Pro V5-60 Trailed Feeder Valve
  • [5] Hy-Pro V5-60 Trailed Feeder Valve
  • [5] Hy-Pro V5-60 Trailed Feeder Valve

  • [5] Hy-Pro V5-60 Trailed Feeder Valve

  • V5-60 Trailed Feeder
  • £1,950.00

:  at  £1,950.00  each

Product Code: R140 T4 - DE.12- DE.12 - DE.12 - DE.12 - DE.12 - FDEN S - FCEN 12 - ME 12 - T4OE

Inlet coding
R140 = Relief Valve set to 140 bar
T4 = top port G1/2 ports

Working sections coding x 5 off
DE.12 = cylinder, electric 3 position, no lever, 12v solenoid
FDEN S = flow divider electric, manual screw adjustment
FCEN 12 = flow control electric, 12v solenoid
ME.12 = motor spool, electric 3 position, no lever, 12v solenoid

Outlet coding
T4OE = top port G1/2 ports, electric outlet

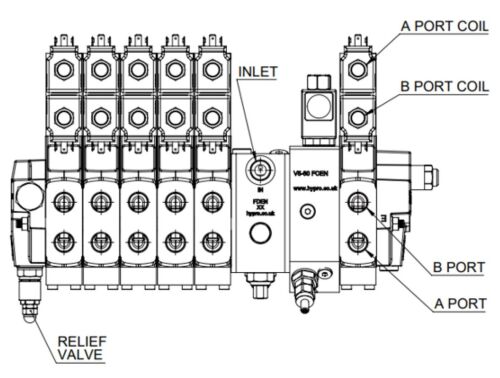

G1/2 Valve Assembly

Application

Agriculture—Trailed Feeder

  • Inlet flow divider– preset for rams
  • Solenoid, Pneumatic and Manual sections
  • Proportional speed control for motors
  • 250 bar back pressure
  • Low current coils (integral oil pilot)
  • Dual axis or 90 deg lever options
  • S/S levers, anodised lever housings
