CODE: DDV-L-H (with detent & lever)

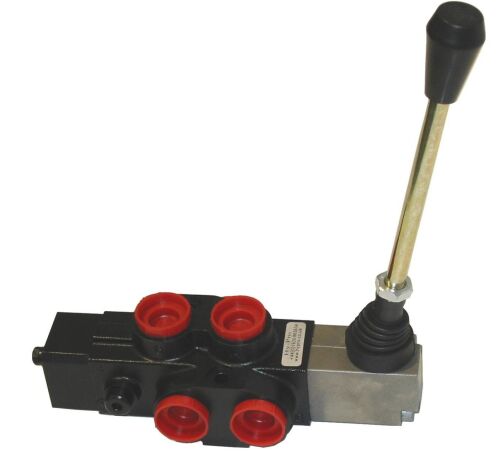

The Hy-Pro six port diverter valve or double diverter valve is a cast iron two position valve that allows two separate circuits to be controlled from one hydraulic source.

Rated at 60 litres per minute and 250 bar it is available with either spring offset or detented spool locations. It uses the same enclosed lever as the sectional valve ranges and the spool return mechanism is fully enclosed.

A micro-switch can be fitted as a further option. The valves are also available fully marinised.
