DESCRIPTION

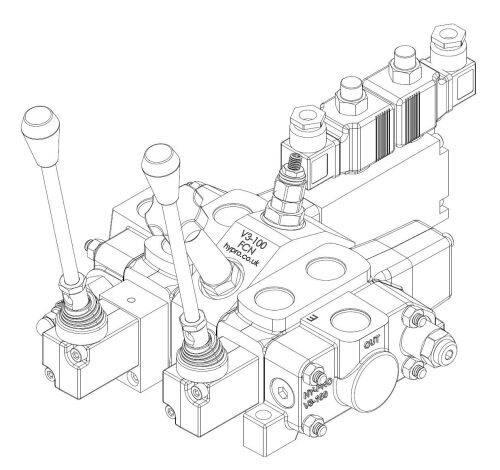

The V3-100 directional sectional spool valve is one of the most compact 100 l/min valve available. Designed for pressures up to 250 bar the valve is available with two, three and four position spool control options and a range of spool types. The lever mechanism is a pressure die casting which totally encloses the spool for added protection. A range of optional ancillary valves are also available to be able to match the requirements of the most complicated and demanding circuits.

The V3-100 is also available with solenoid control. It uses 12V and 24V 24 Watt DC coils to switch the internal oil pilot to engage the main spool. A damping orifice fitted in the pilot line eliminates the harshness usually associated with standard direct acting solenoid valves and gives a positive feel to the control system.

Both manual and solenoid sections can be built into a valve assembly and the solenoid sections have the options of lever override.

Application
Designed to be used in applications requiring a rugged, compact control valve with the option of remote control. Typically in the automotive recovery, recycling and agricultural industries where a mix of manual and solenoid control is essential.

Features

• Excellent metering characteristics.
• Excellent load holding.
• Integral load check valve.
• Open and closed centre option.
• Adjustable, pilot operated relief valve.
• Robust enclosed lever mechanism.
• Flow control option.
• 100% production testing.
• Environmental protection option.
• 12 and 24V DC 24 Watt coils.
• Soft spool action.
• Interchangeable with manual sections.
• Lever override option.

This valve has a fully enclosed spool, and an integral load hold check. It is suitable for open and closed centre circuits, and there is an option for marine protection.

Key technical specifications of the Hy-Pro V3-100 are as follows:

• Maximum flow: 100 litres per minute
• Maximum pressure: 210 – 250 bar
• Maximum back pressure: 35 bar
