CODE:V5-60 G1/2 Winch Valve, for operation of Pot/Creel and Gill Net Haulers

[also sold as by Spencer Carter as their 1VR]

R140 S4-DOHO M-S60

Relief valve set to 140 bar, Side ports for IN+OUT, port size 4 (G1/2)

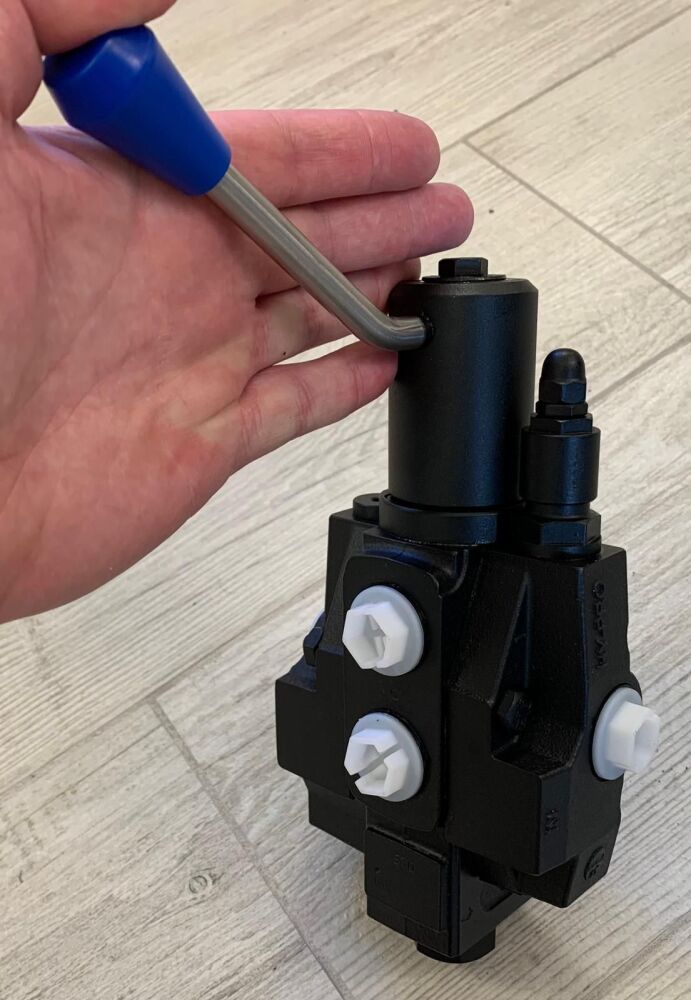

The Hy-Pro V5-60 G1/2 sectional valves are a standard in winch applications across the marine industry. There are control options for either rotary lever or by-pass flow control in conjunction with excellent spool metering to precisely control the winch speed. The valves feature environment-protection of external and internal components to withstand harsh on-deck conditions. The V5-60 valve is suitable for flows up to 60 L/min at 250 bar.

The Hy-Pro rotary lever has been developed specifically to enable the operator precise control of motors and cylinders. The lever swings through an arc of 130° and works by means of a scroll which converts the rotary action of the lever into axial movement of the spool. The centring mechanism has a friction detent feature which positively holds the spool in neutral then maintains the selected position.

Options available:

Inlet cover: Side or Top ports, with or without relief valve.

Outlet cover: Side or Top ports, with or without Pressure Carry Over (PCO) port.

Spools: Motor ( P, A & B to T) or cylinder (P to T, A & B blocked) configurations.

Rated flow: 60 l/min
Port size: G1/2
Max. pressure service port: 250 bar
Max. pressure inlet port: 250 bar
Max. back pressure outlet port: 25 bar

Temperature rating minimum: -20°c
Temperature rating maximum: +65°c

Spool leakage at 210 bar @ 20°c: <6cc/min

Lower leakage rates are available depending on application - contact HyPro technical sales for further information

Recommended Oil: Mineral based hydraulic ISO VG37
Filtration (minimum:) 25 micron

Materials

Body - cast iron: BS1452-250
Lever: Manganese Bronze CZ114
Lever: Stainless Steel
Tie studs M8: M/F45T
Tie studs torque: 13.5 Nm
Seals: Nitrile
