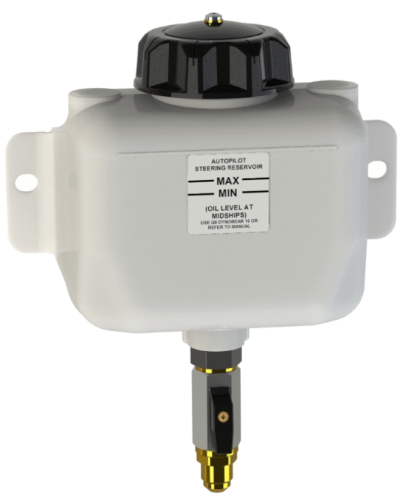

R4306 HYDRAULIC STEERING FLUID RESERVOIR

Specifically developed for hydraulic steering systems this robust reservoir comes complete with marine grade isolator tap, tethered filler / breather cap and a pick up that allows extreme heel angles without spillage or air ingress into the system.  Manufactured from high-density translucent polyethylene for ‘at a glance’ checking of fluid level.

Technical Data

Capacity
Maximum           0.94 Litre
Recommended   0.70 Litre
            (ref. 70º heel angle)

Performance
Temp min          -20ºc
Temp max          +55ºc

Materials
Body                   HDPE
Tap                     Chrome plated brass
Fittings                Brass
Seals                  Nitrile

Weight empty     0.48kg

Connection 5/8 SAE male 45° flare
(G1/4 BSPP male option available reference 4306 A02)

Compatible
Fluids Mineral based hydraulic
