The HS+ hydraulic steering systems are designed specifically for marine secondary steering applications. They are available with either a 2.5 lpm reversing pump or a number of sizes of PC pump. The systems are protected from rudder strikes by integral relief valves. A solenoid clutch is also fitted so that manual mechanical steering can be used.

Description

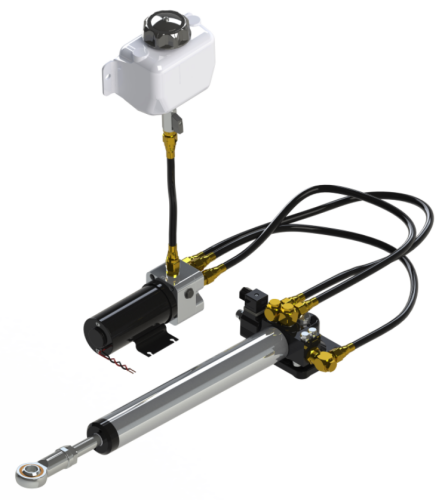

The hydraulic steering systems comprise of a compact cylinder which includes the relief valves and solenoid clutch, a reversing or constant running pump, marine hoses, fittings and a reservoir. The system comes filled ready for installation. A choice of pump sizes can be selected with single or twin cylinders to give a range of hard-over times and thrusts.

Application

Designed specifically for the marine autopilot market, they can be used on sailboats and power-craft with displacement and fast planing hulls. The pumps and cylinders can be matched to give the hard-over times and thrusts to suit the application.

Features

• Pre-filled ready to fit.
• Installation kit included.
• Shorter than conventional cylinders.
• Quiet operation.
• Low maintenance.
• Low power consumption.
• Integral solenoid bypass valve.
• Integral relief valves.
• Marine environment protected (under deck)
• Fully serviceable.
• 12V/24V DC options.
• Reversing or Constant Running pump options.
• Adjustable or non adjustable rod-ends
• Twin opposed cylinder option.

Technical Data

Voltage: 12V/24V DC
Current      Average                         Typical
                 92kgf at 25% duty        intermittent 1016kgf
                      12V     24V             12V       24V
HS+50           2.7A    1.4A             34.0A   15.5A
HS+50S         2.7A    1.4A             34.0A   15.5A
Full stroke time 12V/24V DC (No load), HS+50 25 13 seconds
Ingress protection IP67
EMC protection BS EN 60945:2002 (DC)
Ignition protection BS EN ISO 8846:2017
Ambient operating
Temperature -15 to + 55 deg C
Max operating thrust: 1080kgf (Intermittent)
Relief valve setting 62 bar (1080kgf)
Orientation Red lead to positive - Extends
Black lead to positive - Retracts
Clutch coil 12W
Clutch connection DIN 43650 (4-9 mm cable) IP67
Fluid ISO VG10 to VG40 hydraulic mineral fluid to ISO 6743-4 HV
Weight 14 kg
Feedback Sensor -
      Ingress Protection IP66
      Lead 1.0m
      Resistance 13.0kΩ

Rudder Feedback Sensor

A rudder position sensor can be specified for the HS+50 range.
The typical output signal is 0 to +5V, compatible with most autopilots.
