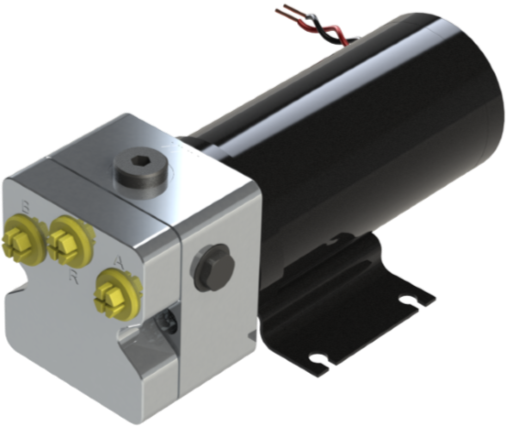

Hy-Pro 2.0 Litre per minute Reversible Pump

2.0 Litre per Minute 100W , available in 12 / 24 vDC

Manufactured by Hy-Pro in the UK and designed for the marine autopilot market, these quiet gear pumps are the drives of choice for major autopilot manufacturers around the world. The range from 0.6 to 2.5 litres per minute is water resistant to IP67 and fully certified to the Recreational Craft Directive (including ignition protection) and the navigational EMC standard. With low power consumption and high performance these pumps are ideal for all types of marine craft and other applications from snow-blowers to dentists chairs.

Backed with over 30 years of continuous development the PR+ range of reversing pumps presents the ultimate in quiet and smooth operation. Unlike noisy piston pump designs the precision gear form delivers smooth flow in all conditions and with minimal noise.

The PR+ pumps are available in 0.5, 0.6, 0.8, 1.0, 1.5, 2.0 and 2.5 litre per minute flows. Pilot check valves are fitted as standard, they can be used with both balanced and unbalanced cylinders. PR+ pumps have an advanced protective coating designed especially for the salt laden atmosphere of the marine environment.

Autopilot Selection Guide:

It is important to select the correct size of pump as it directly influences the ability of the autopilot to steer the vessel. If the pump is too large, the vessel may over steer and will use more power; if it is is too small then the autopilot may struggle to maintain a course.

“Hard Over Time” is the time that the pump takes to drive the rudder from port to starboard. An autopilot drive perferably gives a “Hard over time” of 10 to 14 seconds unless otherwise specified by the autopilot manufacturer. The type of vessel to be steered must be considered as the “Hard over time” may be faster on lightweight planing craft / modern yachts and slower on displacement power boats/ long keel yachts.

To use the table in our product pictures, you will need to know the volume of your steering cylinder, then select the "Hard over time" that you require. Follow the column down until you approximately match your cylinder volume and then select the pump on that row. If your cylinder has a smaller volume then it will have a faster “Hard Over Time”, but if it is larger, it will have a slower “ Hard Over Time”.

In the Box

2.0 Litre per Minute 12v DC Reversible Pump
