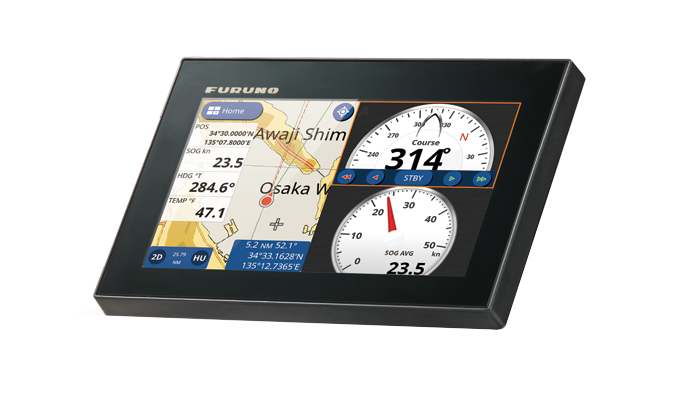

Furuno GP-1871F Combined 7" Chart Plotter with Fish Finder
- Furuno GP-1871F
- £792.00
GPS/WAAS CHART PLOTTER with CHIRP FISH FINDER
Powerful technology in a compact 7" Chart Plotter with Built-in CHIRP FISH FINDER !
The 7" wide Chart Plotter provides the user with powerful, fast performance and intelligent features while remaining compact in size.
Features
The Ultimate Combo Units
Multi-Touch Interface
◆Convenient and intuitive slide-out menus
The GP-1871F/1971F smart interface, inherited from the NavNet TZtouch2,
features slide-out menus containing all the tools and data you need to be in total control.
◆Display modes customization
Customize your display modes and create the perfect
combination to fit your individual needs.
Customize your display modes and create the perfect
combination to fit your individual needs.
Main Menu and Display mode setting
◆Finger Gestures
With the Finger Gestures (one or two fingers) you can either zoom-in, zoom-out, double tap to take a screenshot or even jump to a full-screen mode when using Split-screen display mode.
Chart Plotter (with internal GPS antenna)
◆ Detailed Chart with C-MAP 4D compatibility
By using the incredibly rich C-MAP 4D charts, the GP-1871F/1971F delivers highly precise data that features plenty of useful information, such as relief vectors, tidal streams and marine plans, considerably enhancing your navigational awareness.
By using the incredibly rich C-MAP 4D charts, the GP-1871F/1971F delivers highly precise data that features plenty of useful information, such as relief vectors, tidal streams and marine plans, considerably enhancing your navigational awareness.
C-MAP Chart data
Chart Plotter with instruments panels
◆ Autopilot controls
Via the CAN bus network interface, The NAVpilot-300 and NAVpilot-711C can be connected to the GP-1871F and GP-1971F and controlled directly from the Chart Plotter.
Via the CAN bus network interface, The NAVpilot-300 and NAVpilot-711C can be connected to the GP-1871F and GP-1971F and controlled directly from the Chart Plotter.
Chart Plotter with NAVpilot controls
◆ C-MAP C-Weather
C-Weather data can be downloaded from C-map.com providing Wind, Wave, Weather, Humidity and Temperature information.
◆ Plotter with AIS symbols
When connected to an AIS receiver, the GP-1871F/1971F will display the latest AIS data and provide vessel information.
◆ Various display modes
Including Shaded reliefs, 3D and Satellite views.
C-Weather data can be downloaded from C-map.com providing Wind, Wave, Weather, Humidity and Temperature information.
◆ Plotter with AIS symbols
When connected to an AIS receiver, the GP-1871F/1971F will display the latest AIS data and provide vessel information.
◆ Various display modes
Including Shaded reliefs, 3D and Satellite views.
Built-in CHIRP FISH FINDER
◆ Unmatched detail with TruEcho CHIRP™
The high level of detail available with TruEcho CHIRP™ technology helps to distinguish fish schools, even when close to the sea bed.
Fish can be observed with a very high resolution and are displayed in a distinct boomerang shape. The clear presentation marks individual game fish and bait fish, even when tightly schooled together.
The high level of detail available with TruEcho CHIRP™ technology helps to distinguish fish schools, even when close to the sea bed.
Fish can be observed with a very high resolution and are displayed in a distinct boomerang shape. The clear presentation marks individual game fish and bait fish, even when tightly schooled together.
◆ ACCU-FISH™ and Bottom Discrimination with RezBoost™
With FURUNO’s RezBoost™ data processing technology, fish schools and echoes are shown with high resolution while you can assess fish size and bottom composition thanks to ACCU-FISH™ and Bottom Discrimination functions.
Additionnaly, ACCU-FISH™ icons and colors can be freely customized according to the size and depth of the targeted fish.
With FURUNO’s RezBoost™ data processing technology, fish schools and echoes are shown with high resolution while you can assess fish size and bottom composition thanks to ACCU-FISH™ and Bottom Discrimination functions.
Additionnaly, ACCU-FISH™ icons and colors can be freely customized according to the size and depth of the targeted fish.
Wireless Radar Connection
◆ DRS4W 1st Watch Wireless Radar
The GP-1871F and GP-1971F are connectable to the 1st Watch Wireless Radar
(Output Power 4 kW) giving your Chart Plotter a major upgrade in accuracy and safety.
The GP-1871F and GP-1971F are connectable to the 1st Watch Wireless Radar
(Output Power 4 kW) giving your Chart Plotter a major upgrade in accuracy and safety.
Plotter Overlay mode
Radar mode
Easy screenshot and MicroSD card
Tap the display with two fingers to capture a screenshot
that will be saved directly to your microSD card.
that will be saved directly to your microSD card.
-
AR (Anti-Reflective) glass coating and strengthened glass filter
-
Internal GPS antenna for simple and easy installation
- Daylight viewable with excellent readability , brightness of 1000 cd/m2
- Specification
Display Unit
| Screen Type | GP-1871F: 7" Wide Colour TFT LCD |
|---|---|
| Screen Resolution | WVGA 800 x 480 pixels |
| GPS Antenna | Internal Antenna |
| Display Modes | -Chart Plotter -Fish Finder -Radar (connection to the 1st Watch Wireless Radar DRS4W required) -AIS (connection to AIS sensor required) -Instruments (Nav Data, Engine, Wind, Fuel tank) - -Autopilot (connection to the FURUNO NAVpilot-300 or 700 series required) |
| Language | English (US & UK), French, Spanish, German, Italian, Portuguese, Danish, Swedish, Norwegian, Finnish, Greek, Japanese. |
GPS / SBAS (WAAS/EGNOS/MSAS)
| Receiving Type | GPS 72 channels WAAS 1 channel |
|---|---|
| Receiving Frequency | L1 (1575.42 MHz) |
| Accuracy | GPS: 10 m max, WAAS: 5 m max, MSAS: 7.5 m MAX |
PLOTTER
| Chart | C-MAP 4D |
|---|---|
| Memory Capacity | 30,000 points for ship's track and waypoints 1,000 planned routes (Max. 50 points per route) 5,000 quickpoints |
FISH FINDER
| Frequency | CHIRP: 40 to 225 kHz CW: 50/200 kHz |
|---|---|
| Transducer | 300 W or 600 W or 1kW (Transducer dependent) |
| Range | 5-1, 200m, shift :0-500m |
| Modes | TruEcho CHIRP™*, RezBoost™**, ACCU-FISH™**, Bottom Discrimination**, Dual Frequency**, Dual Range** Auto gain (Fishing/Cruising), Manual gain, A-Scope, Marker Zoom, Bottom Zoom, Bottom Lock * CHIRP dedicated transducer required ** Dual frequency CW compatible transducer required |
OTHERS
| Waterproofing | IP56 |
|---|---|
| Power Supply | GP-1871F: 12-24 VDC, 1.1-0.6 A |
Screenshots

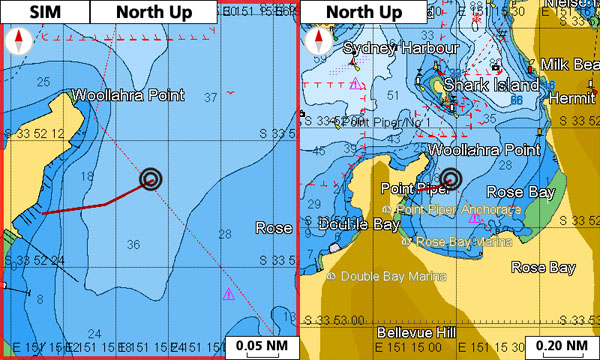

- C-MAP4D Chart
- Dual Screen Chart Plotter / Instruments
Dual Screen Chart Plotter / Dual Frequency FISH FINDER
CHIRP FISH FINDER
Chart Plotter Radar Overlay
Dual Screen Chart Plotter / Autopilot controls
CHIRP FISH FINDER + Quick Menu
Equipment List
Standard
GP-1871F 7"
Option
- Junction BoxFI-5002
- Transducer
525T-PWD
525T-BSD
526TID-HDD
SS60-SLTD/12
SS60-SLTD/20
525T-LTD/20
525T-LTD/12
520-PLD
50B-6 *10M*
50B-6B *15M*
200B-5S *10M*
50/200-1T *10M*
520-5PSD
520-5MSD
525-5PWD
525STID-MSD
525STID-PWD - Temperature SensorT-04MSB
T-04MTB - NMEA2000 Interface UnitIF-NMEA2K2
- Matching BoxMB-1100
Drawing
Interconnection Diagram
Connectable Products
 |
AIS RECEIVER FA-30 | NMEA0183 |
 |
CLASS B AIS TRANSPONDER FA-50 | NMEA0183 |
 |
1st Watch Wireless Radar DRS4W | Other |
 |
AUTOPILOT NAVpilot-300 | CAN bus |
 |
AUTOPILOT NAVpilot-711C | CAN bus |
 |
INSTRUMENT / DATA ORGANIZER FI-70 | CAN bus |
GP-1871F Brochure
